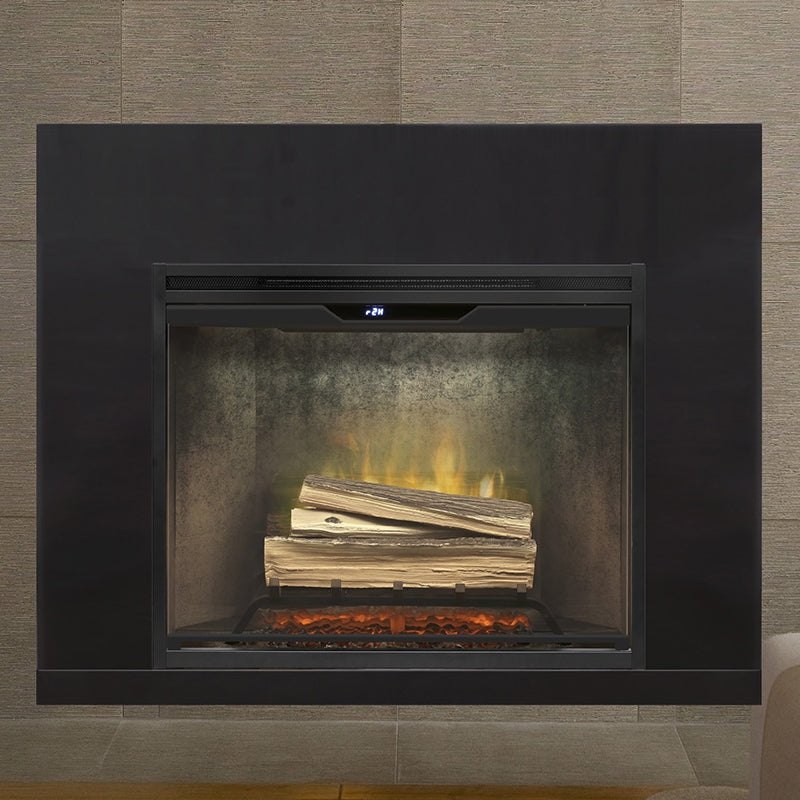

Dimplex Revillusion 30" Built-In Electric Firebox – Weathered Concrete REV30-WC

Dimplex Revillusion 30" Built-In Electric Firebox – Weathered Concrete REV30-WC

Regular price
Price: $2,224.99
Regular price
List Price: $2,447.49
Sale price
Price: $2,224.99
You Save: $222.50 (9%)
UP TO 25% OFF SELECT ITEMS WHILE SUPPLIES LAST: ALL DISCOUNTS ARE APPLIED ON CHECKOUT PAGE | ENDS:

View Cart

Experience the future of fireplace design with the Dimplex Revillusion 24" Built-In Firebox. This innovative electric fireplace reimagines what's possible with stunning, unobstructed flame visuals and an authentic herringbone brick backdrop. The advanced Revillusion Flame Technology delivers dynamic, lifelike flames that captivate, while the exclusive Mirage Flame Panel eliminates glare for pure visual impact. Beyond aesthetics, the Comfort$Saver Heating System outperforms traditional infrared heaters by consuming 11% less energy—and activate Eco Boost for even greater efficiency. Transform your space with a fireplace that combines cutting-edge engineering, remarkable realism, and genuine energy savings in one sophisticated package.

Features

  • Revillusion Flame Technology
    Flames are larger, brighter and more random, appearing from within the logs
  • Mirage Flame Panel
    Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections
  • ThruView Full-depth Design
    See clear through the flames to the back of the firebox for a more authentic experience
  • Mood Lighting
    Customize the firebox glow with a choice of warm hues, plus midnight mode
  • Color Enhancement
    Adjust the flame base color to red or blue
  • Realogs Plus
    A full grate of life-size hardwood-cast logs, tiered for greater depth
  • Full Surround Firebox
    More authentic day or night; 270-degree surround with natural soot markings
  • Brightness and Flicker
    Adjust light level to suit the room and choose flicker effect for enhanced firelight
  • Ambient Light Sensor
    Automatically adjusts firebox light to suit the room day to night
  • Quick and Easy Installation
    Simply frame, wire and finish - no venting, as lines or safety screens
  • Primary Heat
    Option to use 240 volt supply for up to 8,800 BTU - use as part of primary heating plan; heater also operates without flame and can be deactivated
  • All-season Flames
    Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat
  • Direct-wire
    Designed to be direct-wired to a 120, 208 or 240 volt circuit for a seamless lock (optional plug kit available)
  • Low Carbon Footprint
    The most sustainable fireplace option; no emissions and 100% efficient


BTUs 4,400 | 6,745 | 8,794
Carton Weight 66.5 lbs
Dimensions 31 1/8" W x 26 5/8" H x 12 1/8" D
Display/Controls Capacitive touch built-in controls
Flame Only Yes
Framing Dimensions 30 5/8" W x 26 1/4" H x 12 1/2" D
Heat Operation Primary-Heat - Option to use 240V supply for up to 8794 BTU
Heater Only Yes
Heating Range Up to 1,000 sq. ft.
Installation Built-in
Interior Surround Weathered concrete surround
Media Realogs Plus
Outdoor Rated No
Remote Features Mood-maker Remote
Technology Revillusion Flame
UL Certification 6909780700
Voltage 120 V | 208 V | 240 V
Warranty 2 Years
Wattage 1,300 W | 1,975 W | 2,575 W
Wiring Direct-wire (120, 208 or 240 volt circuit)
