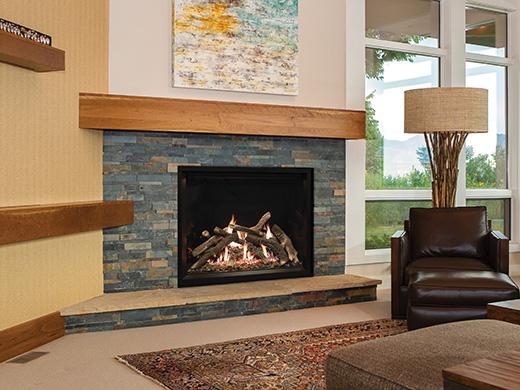

The Rushmore Truflame TruFlame Technology ensures maximum flames and embers glow with minimum emissions so you don't have to worry about the smoke and smell. The system starts with independently controlled front and rear burners set in a large ember bed. The burners create a tall lively fire that intensifies and curls around the hand-painted ceramic fiber logs – generating a continuous scenery of flame shapes and light patterns.
The Rushmore Truflame Fireplace is equipped with a clean face to provide that sleek modern look that can attract any eye. With its massive log set, deep ember bed, dual burner, and huge ceramic glass front, the Rushmore TruFlame (NG) with Liner and Log set is one great-looking fireplace, but what the eyes can not see is what makes this amazing.
Features:
- Dimension: 40 3/4" H x 45" W x 22 1/8" D
- 5 x 8 Venting ~ Top Vent Only
- 14-Piece Log Set
- Ceramic Glass: 31-3/4 x 28-3/8
- Manually Variable Valve
- TruFlame Technology
- Multi-Function Variable Flame Height Remote
- Independent Rear Burner (up to 70% turndown)
- Optional Double Blower
- Accent Lighting ~ on/off and 6-stage dimming
- Maximum BTU Output: 40,000
- Min/Max Natural Gas Inlet Pressure: 4.5"/14" WC
- Min/Max Propane Gas Inlet Pressure: 10.8"/14" WC
- Actual Viewing Area: 36 7/8" W x 34 1/2" H
- Valve Type: IPI Valve
Includes:
- TruFlame Catalyst Technology
- Dual Burners
- Fine Mesh Barrier Screen
- Non-Combustible Board
- Multi-Function Remote Control Features:
- Thermostat Control
- Front and Rear Burner 6-Step Variable Flame Height
- Independent Rear Burner On/Off (70% Turn Down)
- Accent Lighting On/Off with 6-Step Dimming
- Optional Double Blower On/Off with 6-Speed Settings
- Optional Blower
- Optional Fronts
- Venting:
- 5" x 8" Top Vent Only
- 12" Minimum Vertical Rise before Horizontal Venting (with conventional venting)
- Conventional DV Kits
- Optional Power Venting Kits
- Ceramic Glass: 28 3/8" H x 31 3/4" W
- Framing: 53 1/2" H x 45 1/2" W x 22 1/8" D (See manual before framing)
- Electronic Variable Valve with Variable Thermostat Remote
- BTU Max / Min: 40,000 / 26,000


SPECIFICATIONS
|
Fuel Type: |
Gas |
Vent Type: |
Direct Vent |
Vent Size: |
5x8 |
Ignition Type: |
Electronic Ignition with Multi-Function Remote |
Installation Type: |
Zero Clearance |
Style: |
Traditional |
Vent Inner Diameter: |
5 Inches |
Vent Outer Diameter: |
8 Inches |
Weight: |
300 lbs. |
Model: |
Natural Gas (NG) |
Propane (LP) |
Max. (BTU/HR): |
40,000 BTU's |
40,000 BTU's |
Min. (BTU/HR): |
26,000 BTU's |
33,000 |
|
Height |
Width |
Depth |
403/4" |
45" |
221/8" |
|
Height |
Width |
Depth |
511/2" |
451/2" |
221/8" |
Options & Accessories
Liners:

|
Logs:


|
Ceramic Glass: 31 ¾ x 28 3/8-in, Venting: 5 x 8 Top Vent Only, 12-in min. rise before horizontal Framing: 51 1/2 H x 45 1/2 W x 22 1/2 D
|
